Perfect partners: New Scale precision parallel gripper and Universal cobots

Perfect partners: New Scale precision parallel gripper and Universal cobots article image

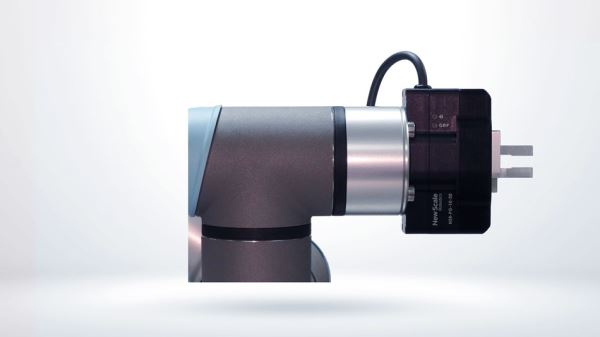

The NSR-PG-10-20 Precision Parallel Gripper from New Scale Robotics is the smallest and most precise smart gripper available for collaborative robots.

It offers precision force control, and real-time finger position information for precision metrology. It is compact and light weight for agility in intricate part handling.

New Scale Robotics, a division of New Scale Technologies, says the NSR-PG-10-20-UR Precision Parallel Gripper is compatible with e-Series collaborative robots from Universal Robots (UR).

 It installs in under 30 minutes using only the UR robot output flange, tool I/O port and teach pendant.

This means you minimise set-up time and can make quick changes on the factory floor.

Ideal combination

“Our precision gripper, the smallest available for UR robots, is the perfect tool to take advantage of the higher precision and sensitivity of UR’s new e-Series robot,” said David Henderson, CEO of New Scale Technologies.

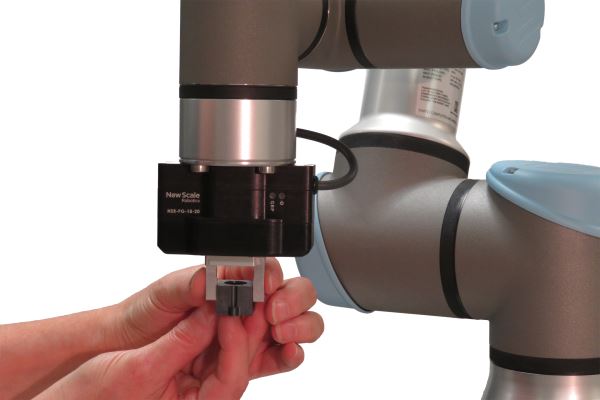

The NSR-PG smart gripper is specifically intended for small robots and small parts.

new scale hero

It is ideal for use with UR3e, UR5e and UR10e collaborative robots for intricate part h

andling, measurement, sorting and assembly.

The NSR-PG-10-20-UR weighs only 175g and handles workpieces up to 100g.

It connects to the UR tool I/O port with a single cable. It has 20 mm finger stroke and can measure part size with 30 µm precision. It features teachable finger positions and easily interchangeable fingers.

For more features and specifications visit: https://newscalerobotics.com
